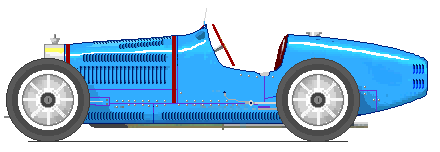

Bugatti Type 35 Series
| Grand Prix / Voiturette |
| Design: | Ettore Bugatti |
| Engine: | see below |
| Transmission: | 4 speed gearbox |
| Chassis: | channel section side members |
| Suspension: | front: semi elliptic |
| rear: reversed quarter elliptic |
| Dimensions: | wheelbase: 240 cm, track: 120/120 cm, weight: |
| Year: | 1924 - 1935 |
| Cars built: | T35 & T39: 210 1924 - 1931 |
| T35A: 130 1926 - 1929 |
| T37 & T37A: 290 1926 - 1930 |
| T51 & T51A: 40 1931 - 1935 |
Models and Engines:
|
| | Type 35: | 8 cyl in-line | 60 * 88 mm = 1991 cc | 3 valves/cyl | | 100 bhp |
| 8 cyl in-line | 52 * 88 mm = 1495 cc | 3 valves/cyl |
| Type 35: | 8 cyl in-line | 51.3 * 66 mm = 1091 cc | 3 valves/cyl | supercharger |
| Type 35A: | 8 cyl in-line | 60 * 88 mm = 1991 cc | 3 valves/cyl | | 75 bhp |
| Type 35T: | 8 cyl in-line | 60 * 100 mm = 2262 cc | 3 valves/cyl | | 110 bhp |
| Type 35B: | 8 cyl in-line | 60 * 100 mm = 2262 cc | 3 valves/cyl | supercharger | 150 bhp |
| Type 35C: | 8 cyl in-line | 60 * 88 mm = 1991 cc | 3 valves/cyl | supercharger | 125 bhp |
| Type 37: | 4 cyl in-line | 69 * 100 mm = 1496 cc | 3 valves/cyl | | 60 bhp |
| Type 37A: | 4 cyl in-line | 69 * 100 mm = 1496 cc | 3 valves/cyl | supercharger | 85 bhp |
| Type 39: | 8 cyl in-line | 60 * 66 mm = 1493 cc | 3 valves/cyl | | 100 bhp |
| Type 39A: | 8 cyl in-line | 60 * 66 mm = 1493 cc | 3 valves/cyl | supercharger | 130 bhp |
| Type 51: | 8 cyl in-line | 60 * 88 mm = 1991 cc | 2 valves/cyl | supercharger | 160 bhp |
| Type 51-1: | 8 cyl in-line | 60 * 100 mm = 2262 cc | 2 valves/cyl | supercharger | 180 bhp |
| Type 51A: | 8 cyl in-line | 60 * 66 mm = 1493 cc | 2 valves/cyl | supercharger | 130 bhp |
| Type 51C: | 8 cyl in-line | 60 * 88 mm = 1991 cc | 2 valves/cyl | supercharger | 160 bhp |

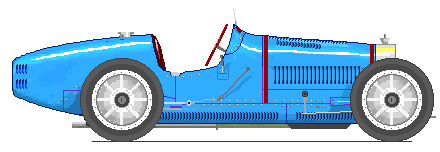

T35 / T35T / T39

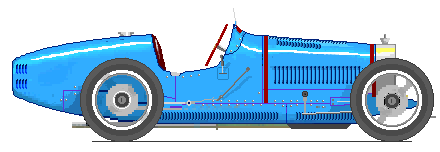

T35A / T37

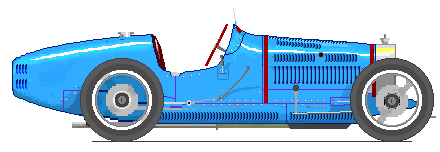

T37A
T35TC / early T35B / T39A

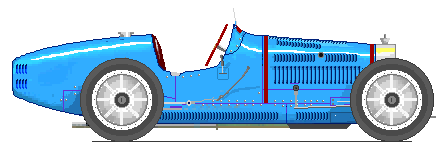

late T35B / T35C
T51 / T51A
|
Victories:

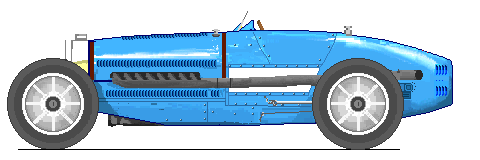

Bugatti Type 54
| Formula Libre |
| Design: | |
| Engine: | 8 cyl in-line 86 * 107 mm 4972cc 2 valves/cyl |
| Roots supercharger 250+ bhp |
| Transmission: | 3 speed gearbox |
| Chassis: | channel section side members |
| Suspension: | front: semi elliptic |
| rear: reversed quarter elliptic |
| Dimensions: | wheelbase: 275 cm, track: 135/135 cm, weight: |
| Year: | 1932-34, 12 cars built |
Victories:

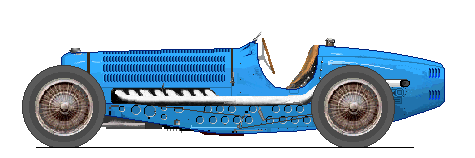

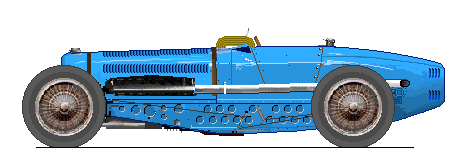

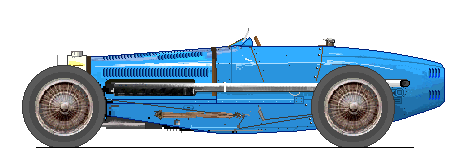

Bugatti Type 59
| Grand Prix 750 kg |
| Design: | |
| Engine: | 8 cyl in-line 67 x 100 mm = 2819cc 2 valves/cyl ? |
| 8 cyl in-line 72 * 88 mm = 2866cc 2 valves/cyl |
| 8 cyl in-line 72 * 100 mm = 3257cc 2 valves/cyl |
| 59/50: | 8 cyl in-line 86 * 107 mm = 4972cc 2 valves/cyl |
| Roots supercharger 240 bhp |
| Transmission: | 4 speed gearbox |
| Chassis: | channel section side members |
| Suspension: | front: semi elliptic |
| rear: reversed quarter elliptic |
| Dimensions: | wheelbase: 260 cm, track: 125/125 cm, weight: |
| Year: | 1933 - 1936, 8? built + specials |
The Type 59 was built with a 2.9 litre engine for the 750 kg formula.
It was the last classic Bugatti car, taking the design theme to its peak.
The car wasn't even built as a monoposto.
The car had brake drums integrated with the wheels, both being changed
at the same time. The engine was started by handle on the left side.
It proved to be a well balanced car with good road holding. Its major handicap
was the cable-operated brakes.
The first cars were ready for the 1933 Spanish Grand Prix. In 1934 the engine was enlarged
to 3.2 litre, the improved variant first seen at the French GP.
Compared to the German cars the T59s was totally uncompetive, expensive to maintain and had a low reliability.
No privateer was interested to order the car.
After the 1934 season Bugatti managed to sell four of the cars to the British privateers Earl Howe, Brian Lewis,
Charlie Martin & Lindsey Eccles.
In 1935 one car appeared at the French GP with a 4.9 litre T50 engine.
One of the chassis was used to built a single seater. It was first seen during practice for the Monaco GP.
In 1936 Bugatti was also able to enter and win with their T59 GP cars in the Comminges Sports car race, a maneuver
that created a storm of protests from the other teams.
Bugatti decided that two works T59 was enough and sent the third car to the 1936 Vanderbilt cup in New York to be raced by
Louis Meyer. The car was a non-starter but was sold after the race.
Variants:
Victories:

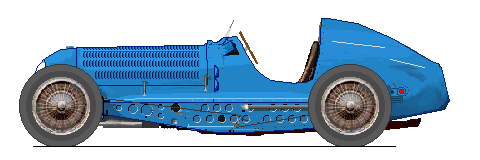

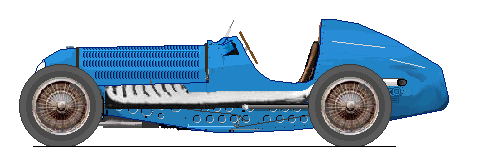

Bugatti Type 59/50B
| Grand Prix 750 kg / 3 litre / Formula Libre |
| Design: | |
| Engine: | 8 cyl in-line 84 * 107 mm 4739cc 2 valves/cyl |
| 8 cyl in-line 84 * 100 mm 4433cc 2 valves/cyl |
| 8 cyl in-line 78 * 78 mm 2982cc 2 valves/cyl |
| Rootes supercharger |
| Transmission: | 4 speed gearbox |
| Chassis: | channel section side members |
| Suspension: | front: |
| rear: |
| Dimensions: | wheelbase: 260 cm, track: 125/125 cm, weight: 750+ kg |
| Year: | |
Bugatti decided to built a 4.7 litre light metal variant of their T50 engine, used in the Bugatti T54, for their T59 GP cars.
The engine, named T50B was first seen i the new "monoplace" in practice for the the 1936 Monaco GP. Raced by Wimille
that car finished second in the 1936 Vanderbilt cup.
For the 3 litre formula Bugatti constructed two reduced versions of the engine, a 4.5 litre unsupercharged
and a 3.0 litre supercharged. The 4.5 litre car was used in the 1937 "Million race" at Montlhéry, while the supercharged car
was seen in 1938 at the Cork GP and the French GP.
In 1939 the Bugatti team did not enter any GPs. A 4.7 litre car with a new streamlined body appeared only at the Prescott and
La Turbie hillclimbes and at the Coupe de Paris where it won. After the war the car won the
1945 GP de la Libération.
Variants:
4.5 litre "monoplace" "Million race" 1937
3.0 litre 1938

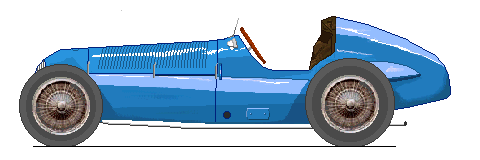

4.7 litre single seater 1939
|

1936/ 4.5L 1937 3.0L 1938 1939
Victories:
